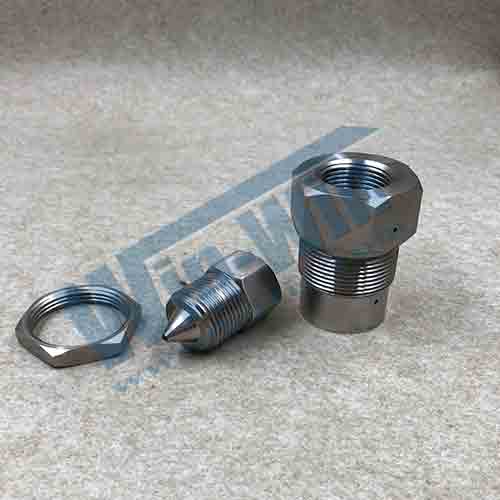

Robotic Waterjet Parts HP Coupling Assembly 49830581

• Part Name：HP Coupling Assembly
• Part Number：49830581
• Introduction：The 49830581 Waterjet Stainless steel HP Coupling Assembly, Bulkhead .56 F x .38 F , 66,000 psi. is installed at the high-pressure water outlet position behind the KMT intensifier pump. If the intensifier pump is far away from the cutting platform or the robot system, it is recommended to use 9/16 high-pressure pipe from this hp coupling assembly, which can ensure enough flow, If the distance is not very far, it is recommended to connect the 3/8 high pressure pipe to ensure sufficient flow. It is not recommended that the customer use the 1/4 high pressure pipe connection directly, this will hinder the flow of high-pressure water, cause the attenuation of high-pressure water, and increase the load on the intensifier pump.
