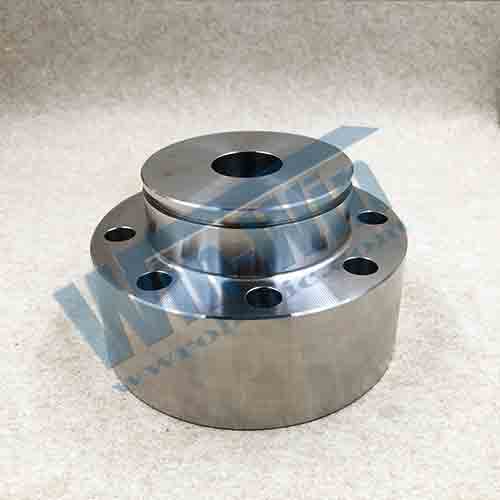

Waterjet Parts 05034772 Hydraulic Cylinder Head

• Part Name：Hydraulic Cylinder Head
• Part Number：05034772
• Technical tips：0.88 inch KMT water jet cutting intensifier pump unit uses the hydraulic cylinder head, used on the 15-60HP intensifier pump unit, used in the SL-IV, SL-V series, standard water jet cutting intensifier pump hydraulic cylinder head. Technical Tip: This hydraulic cylinder head need not distinguish between the left and right hydraulic cylinder heads. They are all common sizes, so you can buy and install with confidence. When installing this hydraulic cylinder head, a good way is to replace the oil seal with the flange together. And make sure that there is no foreign matter in the thread of the hydraulic cylinder head before installation, and apply lubricant to the O-ring seal. When installing, use a rubber hammer to gently tap the hydraulic cylinder head to install the hydraulic cylinder head into the cylinder. Please note that use a rubber hammer to strike the edge of the cylinder end cover crosswise to prevent serious misalignment from damaging the cylinder assembly. After installation, please tighten the screws of the hydraulic cylinder head in a clockwise staggered order. The first step is to use a counter wrench to tighten each screw to 27NM, and the second step is to use a technical wrench to tighten each screw to 43-47NM. Note again that it is important to keep tightening in a clockwise staggered manner.
