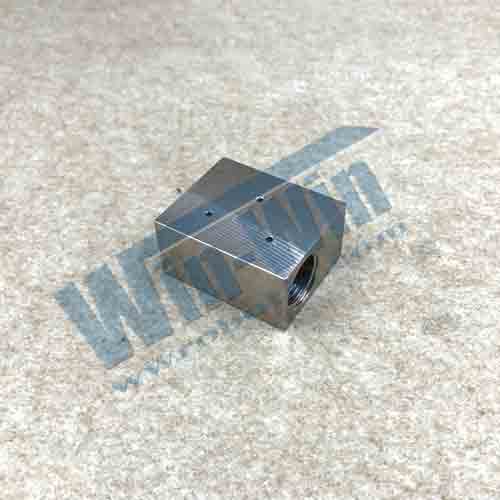

10189181 Pneumatic Valve Body 2-Port 0.38*0.56, Stainless Steel

• Part Name：Pneumatic Valve Body 2-Port 0.38*0.56, Stainless Steel
• Part Number：10189181
• Introduction：10189181 pneumatic valve body is used in most of the KMT water jet cutting heads, the standard water switch valve body, standard size and material. Technical Tip: We have a large stock of KMT original parts. The 10189181 pneumatic valve body is equipped with maintenance components, connect a cylinder on the top, connect a nozzle tube of the cutting head on the bottom, and connect a high-pressure tube through the adapter on the side. Note that the valve needle and valve seat inside the pneumatic valve body are very fragile. Adjusting the appropriate air pressure can protect the valve needle and valve seat.
